LMD plum coupling

TIME：2017-08-21    AUTHOR：admin

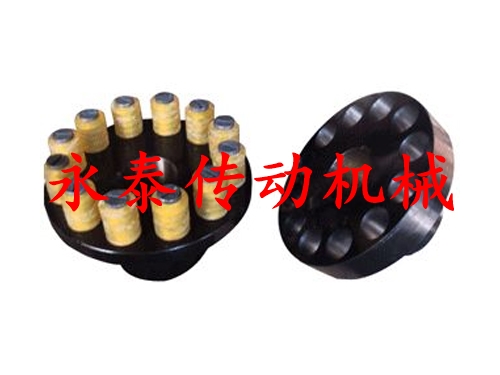

Name: LMD (original MLZ) type single flanged plum flexible coupling
Description: LMD (original MLZ) type single flange type plum elastic coupling is mainly composed of two closely with convex tooth meshing and radial extrusion to transfer torque, when two axis has relative offset, corresponding elastic deformation of the elastic component, automatic compensation effect.
Label: lmz-i (original MLL - I) type split-type elastic coupling for the type of flexible coupling
Product details:
LMD (original MLZ) type single flange type plum elastic coupling is mainly composed of two closely with convex tooth meshing and radial extrusion to transfer torque, when two axis has relative offset, corresponding elastic deformation of the elastic component, automatic compensation effect.
MLZ series plum coupling scope of application and performance features: 1. The quincunx MLZ series elastic coupling, plum elastic coupling has the following characteristics: beautiful form elastic coupling structure is simple, small radial size, light weight, small moment of inertia, is suitable for the high speed situation, plum flower form elastic coupling work stable and reliable, and has a good vibration damping, buffer and electrical insulating properties. The plum flower form elastic coupling has a larger Angle to the axial, radial and compensation ability, the plum flower form elastic coupling high-strength wear-resistant oil resistant polyurethane elastic component, large carrying capacity, long service life, safe and reliable, coupling without lubrication, less maintenance workload, can run for a long time continuously. The plum blossom elastic coupling is mainly suitable for frequent starting and positive &negative, high speed, medium torque and requires high reliability of the workplace, such as: metallurgy, mining, petroleum, chemical, lifting, transportation, light industry, textile, water pump, fan, etc. - working environment temperature 35 ℃ ~ + 80 ℃, the nominal torque 25 ~ 12500 nm, allowable speed of 1500 ~ 15300 r/min. ML series quincunx elastic coupling is mainly composed of two closely with convex tooth meshing and radial extrusion to transfer torque, when two axis has relative offset, corresponding elastic deformation of the elastic component, automatic compensation effect.
Basic performance parameters and main dimensions of LMD (original MLZ) type spring coupling


Type Tn /N·m [n]/ r·min-1 r/min d1、d2、dz L L0 D D1 Elasticity m/kg I/ kg·m2
Hardness
a(HA) b(HD)
80±5 60±5
LMD1 25 45 8500 12、14、16、18、19、20、22、 24、25 35 92 50 90 MT1-a MT1-b 1.206 0.00082
LMD2 50 100 7600 16、18、19、20、22、24、25、 28、30 38 101.5 60 100 MT2-a MT2-b 1.648 0.0014
LMD3 100 200 6900 20、22、24、25、28、30、32 40 110 70 110 MT3-a MT3-b 2.357 0.0024
LMD4 140 280 6200 22、24、25、28、30、32、35、 38、40 45 122 85 125 MT4-a MT4-b 3.556 0.005
LMD5 350 400 5000 25、28、30、32、35、38、40、 42、45 50 138.5 105 150 MT5-a MT5-b 6.361 0.0135
LMD6 400 710 4100 30、32、35、38、40、42、45、48 55 155 125 185 MT6-a MT6-b 10.768 0.0329
LMD7 630 1120 3700 35*、38*、40*、42*、45、48、 50、55 60 172 145 205 MT7-a MT7-b 15.302 0.0581
LMD8 1120 2240 3100 45*、48*、50、55、56、60、63、65 70 195 170 240 MT8-a MT8-b 22.717 0.1175
LMD9 1800 3550 2800 50*、55*、56*、60、63、65、 70、71、75、80 80 224 200 270 MT9-a MT9-b 34.439 0.233
LMD10 2800 5600 2500 60*、63*、65*、70、71、75、 80、85、90、95、100 90 248 230 305 MT10-a MT10-b 51.358 0.459
LMD11 4500 9000 2200 70*、71*、75*、80*、85*、90、95、 100、110、120 100 284 260 350 MT11-a MT11-b 81.302 0.977
LMD12 6300 12500 1900 80*、85*、90*、95*、100、 110、120、125、130 115 321 300 400 MT12-a MT12-b 115.53 1.751
LMD13 11200 20000 1600 90*、95*、100*、110*、120*、125*、 130、140、150 125 348 360 460 MT13-a MT13-b 161.79 3.366
LMD14 12500 25000 1500 100*、110*、120*、125*、130*、 140*、150、160 135 358 400 500 MT14-a MT14-b 196.30 4.867
