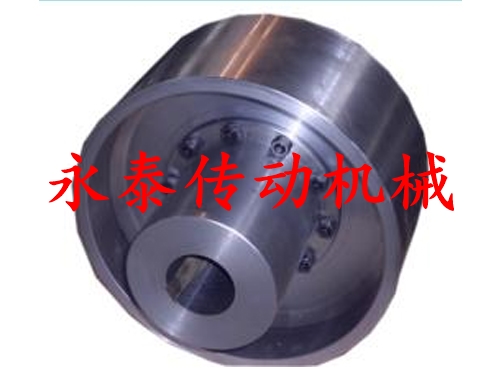

Name: HLL type band brake cylinder pin coupling

Description: the elastic pin coupling of HLL type band brake wheel has been listed as the national standard gb5014-85, which is suitable for the transmission shaft of the two coaxial lines of mechanical connection, usually used for high and low speed movement.

Label: HL type elastic cylinder pin coupler, HLL type elastic pin coupler

Product details:

The elastic pin coupling of HLL type belt brake wheel has been listed as national standard gb5014-85, which is suitable for the transmission shaft of two coaxial lines of mechanical connection, usually used for high and low speed movement.

HLL type belt brake roller pin coupler structure is simple and easy to manufacture. It is convenient to install and remove elastic elements without moving the two-and-a-half coupling. Elastic element (elastic dowel pin) nylon material selection in general, there are two axis offset trace compensation ability, flexible work under shear, work reliability is poor and is only applicable to medium speed transmission shafting with low requirements, the operation condition of the high reliability requirement does not apply to work.

HLL belt brake wheel elastic dowel pin coupling working temperature is 20 ~ + 80 ℃; The transfer torque is 40 ~ 20000n. m. HLL type coupling with brake wheel elastic dowel pin has a larger structure is simple and reasonable, convenient maintenance, bilateral symmetry, interchangeable, long life, allows larger axial channeling, buffer, shock absorption, wear-resisting performance, etc.

Technical parameters of the shaft pin coupler of HLL type belt brake roller:

Nominal torque Tn: 315N. M

Allowable speed n: 5600r/min

Axis diameter: 20, 22, 24, 25, 28, 30, 32, 35mm

Axial diameter, Y type L: 52, 62, 82, J, J1, Z: 38, 52, 44, 62, 60, 82mm

Brake wheel size D0:200mm

Large outer diameter D: 120mm
