G Ⅱ CLZ drum type coupling

TIME：2017-08-22    AUTHOR：admin

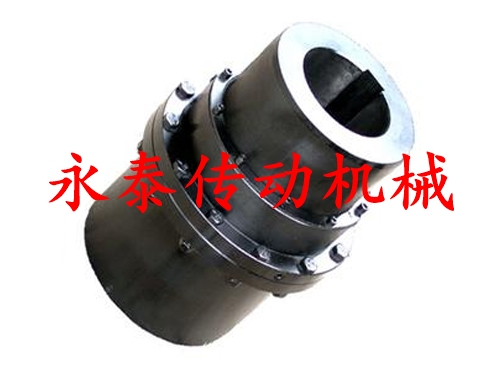

Name: G Ⅱ type CLZ - drum type coupling
Type description: G Ⅱ CLZ - drum type coupling is made by the same number of inner gear ring and out-of-band tooth flange half couplings and other parts.
Tags: NGCL type belt wheel braking drum type coupling type G Ⅱ CL - drum type coupling type NGCLZ meet intermediate belt brake wheel drum type coupling
Product details:
Type G Ⅱ CLZ - drum type coupling is made by the same number of inner gear ring and out-of-band tooth flange half couplings and other parts. Divided into straight teeth and drum tooth outside two kinds of tooth shape, tooth is the so-called drum will made spherical outer teeth, spherical center on the gear axis, backlash is generally large gear, drum gear couplings allows a larger angular displacement (as opposed to straight tooth coupling), can improve the tooth contact conditions, improve the ability to transfer torque, prolong service life. The contact state along the tooth width in angular displacement.
Drum type coupling at work, two relative angular displacement of the shaft of the internal and external gear tooth surface of periodic axial relative sliding, inevitable formation of tooth surface wear and power consumption, therefore, the coupling should be in a good and seal condition normally. Type coupling radial size is small, large carrying capacity, often used for shaft transmission of working condition of low speed and heavy loading, high precision and the dynamic balance of coupling can be used for high-speed transmission, such as gas turbine shaft transmission. Because the drum type coupling Angle is greater than the direct coupling to the compensation, both at home and abroad widely used drum type coupling, straight type coupling are eliminated products, choose those should not choose as far as possible.
Type G Ⅱ CLZ - drum type coupling basic parameters and main dimensions

NO. Tn(N.m) Max [n](r/min) R L D C Rotational inertia Kg.m2 Weight Kg
  Y J1
d1 d2 L
GIICLZ1 355 4000 14 16 19 42 - 103 8 0.016 3.5
20 22 24 52 38 0.015 3.3
25 28 62 44 0.016 3.5
30 32 35 (38) 82 60 0.020 4.1
(40 42 45 48 50) 112 84
GIICLZ2 630 4000 16 18 19 20 22 24 52 38 115 8 0.027 5.3
25 28 62 44 0.025 4.8
30 32 35 38 82 60 0.028 5.7
40 42 45(48 50 55 56) 112 84 0.032 7.2
(60) 142 107 0.032 9.2
GIICLZ3 1000 4000 22 24 52 38 127 8 4.036 3.8
25 28 62 44 0.044 7.8
30 32 35 38 82 60 0.044 7.6
40 42 45 48 50 55 56 112 84 0.053 12.5
(60 63 65 70 71) 142 107 0.053 16.5
GIICLZ4 1600 4000 38 82 60 149 8 0.085 10.5
40 42 45 43 50 55 56 112 84 0.102 13.5
60 63 65(70 71 75) 142 107 0.156 16.5
(80) 172 132 0.156 19.4
GIICLZ5 2800 4000 38 82 60 167 10 0.17 17.4
40 42 45 48 50 55 112 84 0.176 18.1
60 63 65 70 71 75 142 107 0.207 23.1
(80 85 90) 172 132 0.207 28.5
GIICLZ6 4500 4000 45 48 50 55 56 112 84 187 10 0.300 23.9
60 63 65 70 71 75 142 107 0.300 29.3
80 85 90 95 172 132 0.356 35.4
100(105*) 212 167 0.417 36.2
GIICLZ7 6300 3750 50 55 56 112 84 204 10 0.458 29.6
60 63 65 70 71 75 142 107 0.534 36.3
80 85 90 95 172 132 0.628 43.8
100 105*(110)(115*) 212 167 0.759 54.3
GIICLZ8 9000 3300 55 56 112 84 230 12 0.734 37.8
60 63 95 70 71 75 142 107 0.860 46.1
80 85 90 95 172 132 0.996 54.9
100 110 115*(120)(125) 212 167 1.187 67.4
GIICLZ9 14000 3000 60 63 65 70 71 75 142 107 256 12 1.43 60
80 85 90 95 172 132 1.66 71.8
100 110 120 125 212 167 1.997 88
130 135*(140)(150) 252 202 2.3 104.4
GIICLZ10 20000 2650 65 70 71 75 142 107 287 14 2.32 76.1
80 85 90 95 172 132 2.69 91.1
100 110 120 125 212 167 3.12 111.5
130 140 150 252 202 3.739 133.5
GIICLZ11 31500 2350 110 120 125 212 167 325 14 4.89 137
130 140 150 252 202 5.64 162.4
160 170 175* 302 242 6.5 193
GIICLZ12 45000 2100 130 140 150 252 202 362 16 9.56 212.8
160 170 180 302 242 11.05 268
190 200 352 282 12.37 290
GIICLZ13 63000 1850 150 252 202 412 18 15.72 272.3
160 170 180 185* 302 242 18.14 320
190 200 220 225* 352 282 25.36 370
GIICLZ14 100000 1650 170 180 185* 302 242 462 22

27.6

 389
190 200 220 352 282 30.7 438
240 250 410 330 34.4 509
GIICLZ15 160000 1500 190 200 220 352 282 512 22 49.7 566
240 250 260 410 330 55.9 650
280 470 380 62.3 740
GIICLZ16 224000 1300 220 352 282 580 28 84.8 751
240 250 260 410 330 94.9 857
280 300 320 470 380 105.4 947
GIICLZ17 315000 1200 250 260 410 330 644 28 155.3 1110
280 290* 300 320 470 380 173 1255
340 360 365* 550 450 198 1465
GIICLZ18 450000 1050 280 (295) 300 320 470 380 726 28 278 1580
340 360 380 550 450 315 1830
400 650 540 362 2160
GIICLZ19 630000 950 300 320 470 380 960 32 490 2115
340 350 360 380 (390) 550 450 558 2457
400 420 440 450 460 650 540 645 2892
470* 650 540
GIICLZ20 900000 800 360 380 390* 550 450 928 32 960 3223
400 420 440 450 460 650 540 1109 3793
480 500* 650 540 1109 3793
530 540* 800 680 1340 4680
GIICLZ21 1250000 750 400 420 440 450 460 650 540 1022 40 1740 4780
480 500 650 540
530 540* 800 680 2111 5905
