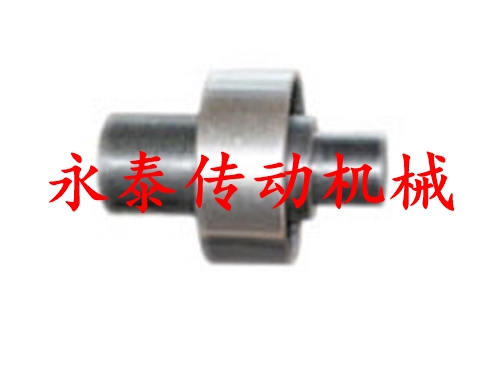

NGCLZ brake drum gear coupling

TIME：2017-08-22    AUTHOR：admin

Name: NGCLZ type intermediate shaft brake drum gear coupling
Description: NGCLZ type intermediate shaft brake drum gear coupling, the gear coupling is made up of the same inner tooth ring and the flange half coupling of the outer tooth.
Label: NGCL type belt brake drum type coupling, CL type gear coupling, GICL type, drum type coupling
Product details:
The NGCLZ type intermediate shaft brake drum gear coupling, the gear coupling is made up of the same inner tooth ring and the flange half coupling of the outer tooth. Divided into straight teeth and drum tooth outside two kinds of tooth shape, tooth is the so-called drum will made spherical outer teeth, spherical center on the gear axis, backlash is generally large gear, drum gear couplings allows a larger angular displacement, can improve the tooth contact conditions, can improve the transmission torque force, prolong service life. The contact state along the tooth width in angular displacement.
Type coupling at work, two relative angular displacement of the shaft of the internal and external gear tooth surface of periodic axial relative sliding, inevitable formation of tooth surface wear and power consumption, therefore, the coupling should be in good and sealing state work. Type coupling radial size is small, large carrying capacity, often used for shaft transmission of working condition of low speed and heavy loading, high precision and the dynamic balance of coupling can be used for high-speed transmission, such as gas turbine shaft transmission. By the drum type coupling Angle is greater than the direct coupling to the compensation, both at home and abroad are widely used drum type coupling, straight type coupling are eliminated products, the selection should not choose as far as possible.

No. Tn（N.m） Max [n]（r/min） R L D C C1 B3 D3 Kg.m2 Kg
  Y J1
d1 d2 dz L
NGCLZ1 355 4000 20 22 24 20 22 24 52 38 103 33 8 68 160 0.071 7.3
25 28 25 28 62 44 0.072 7.4
0.076 8.4
30 32 35 30 32 35 82 60
NGCLZ2 630 4000 25 28 25 28 62 44 115 39 8 68 160 0.081 9.2
30 32 35 38 30 32 35 38 82 60 0.084 9.7
40 42 45 40 42 112 84 0.088 10.5
NGCLZ3 1000 3800 28   62 44 127 39 8 85 200 0.181 15.1
30 32 35 38 30 32 35 38 82 60 0.184 16.3
40 42 45 48 50 55 40 42 112 84 0.193 18.8
NGCLZ4 1600 3800 38   82 60 149 46 8 85 200 0.225 19.8
40 42 45 43 50 55 56 40 42 45 43 50 55 56 112 84 0.242 23.3
60 63 65   142 107 0.296 26.8
NGCLZ5 2800 3000 40 42 45 48 50 55 56 45 48 50 55 56 112 84 167 47 9 105 250 0.596 33.3
0.627 39.0
60 63 65 70 71 75 60 63 65 70 71 75 142 107
NGCLZ6 4500 3000 45 48 50 55 56 50 55 56 112 84 187 52 9 105 250 0.72 40.0
60 63 65 70 71 75 60 63 65 70 71 75 142 107 0.776 46.4
80 85 90    172 132 0.837 53.2
NGCLZ7 6300 2400 50 55 56   112 84 204 52 9 132 315 1.178 51.8
60 63 65 70 71 75 60 63 65 70 71 75 142 107 1.254 59.8
80 85 90 95 80 172 132 1.348 68.2
100   212 167 1.479 79.6
NGCLZ8 9000 1900 55 56   112 84 230 57 12 168 400 3.734 84.0

60 63 65 70 7175

 70 71 75 142 107 3.86 93.1
80 85 90 95 80 85 90 95 172 132 3.996 104
100 110   212 167 4.187 117
NGCLZ9 14000 1500

60 63 65 70 71 75

 75 142 107 256 64 13 210 500 9.43 133
80 85 90 95 80 85 90 95 172 132 9.663 146
100 110 120 125 100 110 212 167 9.997 164
130   252 202 10.3 182
NGCLZ10 20000 1200 65 70 71 75    142 107 287 66 15 265 630 29.32 184
80 85 90 95 80 85 90 95 172 132 29.69 200
100 110 120 125 100 110 120 212 167 30.21 222
130 140 150   252 202 30.74 246
NGCLZ11 31500 1050 70 71 75   142 107 325 74 16 298 710 44.0 240
80 85 90 95 90 95 172 132 45.0 262

100 110 120 125

 100 110 120 125 212 167 45.5 299
130 140 150 130 140 150 252 202 46.0 326
160 170 160 170 302 242 47.0 361
NGCLZ12 45000 1050 75   142 107 362 84 16 298 710 48.0 290
80 85 90 95   172 132 49.0 317

100 110 120 125

 100 110 120 125 212 167 50.0 355
130 140 150 130 140 150 252 202 51.0 382
160 170 180 160 170 302 242 52.0 443
190 200   352 282 53.0 470
NGCLZ13 63000 950 150 150 252 202 412 86 17 335 800 83.0 488
160 170 180 160 170 302 242 85.0 542
190 200 220   352 282 92.0 598
NGCLZ14 100000 950 170 180 170 180 302 242 462 98 18 335 800

95.0

 638
190 200 220 190 200 220 352 282 98.0 698
240 250   410 330 102 780
